2.5. Groundwater Chemistry

A key point from the groundwater lectures is the connection between groundwater and surface water – that groundwater levels reflect changes in surface water. In the lecture we showed data for a hydrograph – that is the level of water in a river – and the underlying water table. There is a small delay, but the water table follows changes in the flow of the local river.

How does Groundwater Chemistry Evolve?

To explore this, we consider the case of arsenic poisoning in groundwater wells in Nepal. There is tremendous elevation change in Nepal, and this leads to temperature gradients from the high Himalaya to the low plains, which in turn leads to nearly an order-of-magnitude difference in annual rainfall. In Nepal, groundwater supplies around 50% of the drinking water for the capital, Kathmandu, and 90% of the drinking water for the bulk of the population in the flood plains (Terai). Only 34% of the population has access to clean drinking water.

Fig. 2.27 Arsenic distribution in groundwater in Nepal Terai districts, showing the widespread contamination of shallow groundwater wells.

We can consider what happens to the chemistry of groundwater along the flow path to understand the chemistry of the drinking water in the flood plains (Fig. 2.28).

Fig. 2.28 Schematic showing how groundwater chemistry evolves along the flow path from recharge to discharge zones.

Chemical Evolution Along the Flow Path

How does the chemistry of groundwater change over distance?

1. Precipitation and Atmospheric Equilibration

   Rain is the major source of water to groundwater systems. Rain is in equilibrium with CO₂ in the atmosphere, and is slightly acidic (pH ~5.5-6.5).

2. Infiltration and Vadose Zone Processes

   During infiltration, chemical reactions occur with soil minerals due to leaching of organic carbon, and there is evapotranspiration which leads to concentration of ions. The water that infiltrates through the vadose zone is therefore slightly acidic and with a higher concentration of ions and dissolved organic matter (DOM).

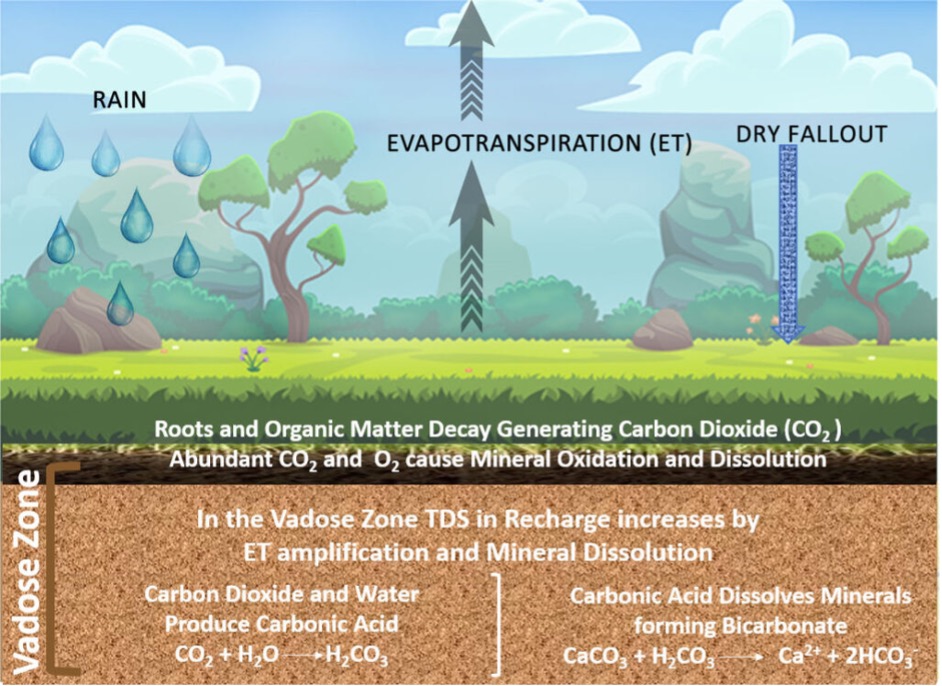

   Fig. 2.29 Schematic of the vadose zone showing plant roots, soil layers, and the processes affecting infiltrating water.



   Fig. 2.30 Geochemical processes in the vadose zone, including organic matter leaching, ion exchange, and mineral weathering.

3. Mineral Dissolution

   Along the groundwater flow path there is further dissolution of minerals which contribute ions to the groundwater. Ionic strength therefore increases along the flow path. Typical ions that are picked up are shown in Fig. 2.31.

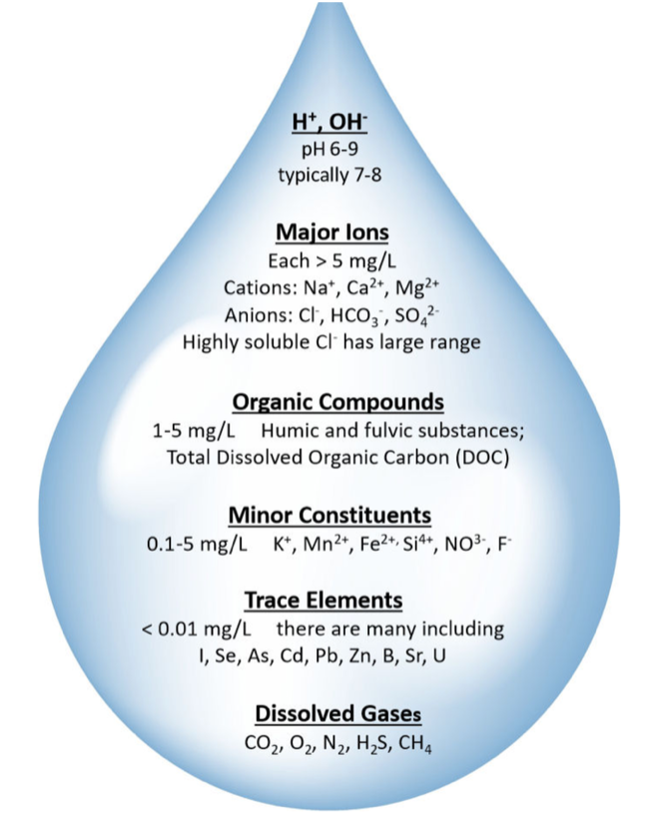

   Fig. 2.31 Common ions found in groundwater, including major cations (Ca²⁺, Mg²⁺, Na⁺, K⁺) and anions (HCO₃^-, SO₄^2-, Cl^-).

   Key to this is an understanding of saturation state and where minerals are undersaturated or oversaturated with respect to the fluids in the groundwater system. We express this using a solubility product for a mineral or salt.

4. Secondary Mineral Precipitation

   The precipitation of secondary minerals can occur as groundwater becomes supersaturated as it ages and changes its chemical composition.

   The longer the flow path, the more altered the chemistry of the fluid will be. In the deepest flow paths you can get exceptionally saline waters that form from dissolution of salt (Fig. 2.32).

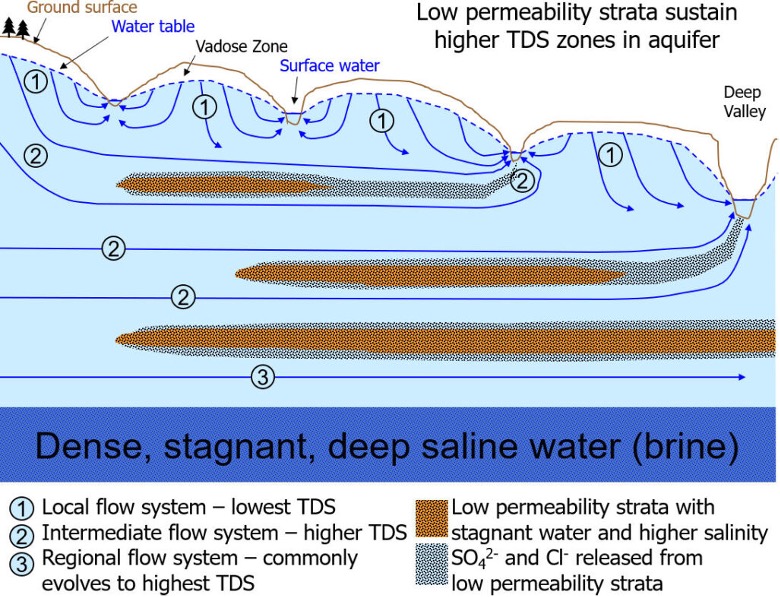

   Fig. 2.32 Schematic summary of the distribution of Total Dissolved Solids (TDS) with depth in groundwater, showing increasing salinity with depth and residence time.

5. Development of Anoxic Conditions

   The longer groundwater is out of contact with the atmosphere, the more likely it is to become anoxic – and lose its oxygen. Remember that redox reactions are the ones that involve the exchange of electrons. In the subsurface there are many things that use up oxygen (respiration, reaction with minerals) but there is no way to make new oxygen.

This evolving chemistry becomes a real problem for arsenic. Arsenic-bearing minerals are easily weathered (chemically dissolved) in anoxic conditions, and in particular when there is a lot of dissolved organic matter which binds to the arsenate ions. Increased human waste at the surface is increasing the flux of organic matter into the subsurface and creating increasingly anoxic conditions that are accelerating the weathering of arsenic.

Contaminant Transport in Groundwater

Having understood a bit about how the chemistry of groundwater evolves along the flow path, we can consider what happens when we add a contaminant to groundwater and how it is likely to travel and disperse through the groundwater system.

Fig. 2.33 A control volume in groundwater showing solute transport by advection and dispersion, with possible chemical reactions within the box.

If we consider a control volume in the groundwater where we have flow of a contaminant (or molecule or element – here we will call it a ‘solute’, meaning a component dissolved in groundwater) through that volume, we can apply mass conservation to this box. Solute can move into the box or out of the box, and chemical reactions can create or destroy solute within the box (e.g. mineral dissolution or precipitation). This allows us to consider the net rate of change of the concentration of the solute within the box.

So how does the solute, or contaminant, move through the control volume?

It moves by advection, and by dispersion.

Advection

Advection causes the wholesale movement of the solute with the flow field at the same velocity as the flow field. So if we have a solute (like a contaminant) in groundwater, and the groundwater is moving at a velocity of 5 meters per year, then if we return one year later, we expect the contaminant to have moved 5 meters away.

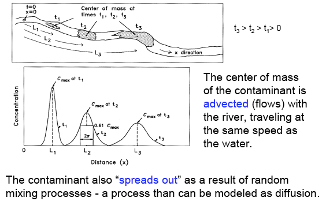

Fig. 2.34 The effect of advection on contaminant movement over time from t0 to t2, showing the displacement of the solute plume with the groundwater flow.

Fig. 2.34 shows the effect of advection on the movement of a contaminant over time from t0 to t2.

In reality what we find is that over this time we often get more than just the movement of the contaminant in the flow field but also the spreading out of the concentration. This is the effect of diffusion and hydrodynamic dispersion.

Dispersion

Fig. 2.35 Illustration of dispersion processes showing how a contaminant plume spreads due to molecular diffusion and mechanical dispersion.

Dispersion comprises molecular diffusion and hydrodynamic or mechanical dispersion.

• Molecular Diffusion describes the spread of particles through random motion from regions of higher concentration to regions of lower concentration. It is governed by Fick’s First law, where the overall flux due to molecular diffusion is given by a diffusion coefficient (determined in the lab) and the concentration gradient:

  (2.16)\[J = -D \pdv{C}{x}\]

  where \(J\) is the diffusive flux, \(D\) is the diffusion coefficient, and \(\pdv{C}{x}\) is the concentration gradient.

• Mechanical Dispersion reflects the fact that not everything in the porous medium travels at the average water flow speed. Some paths are faster, some slower, some longer, some shorter. This results in a net spreading of the solute plume that looks very much like a diffusive behavior.

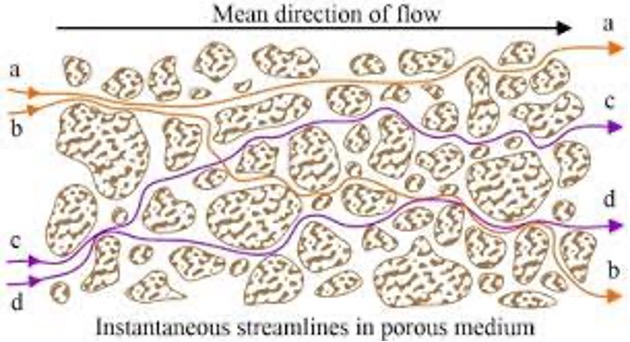

  Fig. 2.36 Modelling of the mechanical dispersion in porous media, showing variations in flow paths through the pore structure.

  Since mechanical dispersion depends on the flow, it is expected to increase with increasing flow speed. The most common expression for mechanical dispersion is given by:

  (2.17)\[D = \alpha v\]

  where \(D\) is the mechanical dispersion coefficient, \(\alpha\) is the dynamic dispersivity, and \(v\) is the average linear velocity.

Note that given the very slow rate of molecular diffusion, advection and hydrodynamic dispersion tend to dominate contaminant transport in groundwater.

Fig. 2.37 Summary diagram showing the combined effects of advection, dispersion, and chemical reactions on contaminant transport in groundwater.

Chemical Reactions

• When solutes flow through a porous medium they can interact with the solid phase. In particular they can sorb and desorb, or precipitate into mineral phases. The net result is a process called retardation that effectively slows the transport of a solute through a porous medium.

• The amount of these chemical reactions and how they impact the overall chemical transport depends on the solute, water chemistry, and geochemical makeup of the porous medium.

The Advection-Diffusion-Reaction Equation

Having discussed advection, dispersion, and chemical reactions individually, we can now consider how they combine in a mathematical framework. In previous lectures, we learned the tools needed to determine how long before a contaminant released into the groundwater would be seen at some point downstream. We could figure out the lines of equipotential and the hydraulic conductivity, and then calculate the flow velocity, which would yield time (with some knowledge of the distance travelled).

However, like most things, it is more complicated than this. The contaminant is not just subject to advection with the flow of the groundwater, but also diffusion (the process by which things move from high concentration to low concentration) and possibly chemical reaction with the porous media. This leads to an entirely different class of equations and models known as advective-diffusive transport models. We will not go through the mathematics of these models in detail, but the standard formula is:

Units!

\[\begin{split} C &= \mathrm{amount~m^{-3}} \\ D &= \mathrm{m^2~s^{-1}} \\ v &= \mathrm{m~s^{-1}} \\ R &= \mathrm{amount~m^{-3}~s^{-1}} \end{split}\]

(2.18)\[D \frac{\partial^2 C}{\partial x^2} - v \frac{\partial C}{\partial x} = R \left( \frac{\partial C}{\partial t} \right)\]

Where \(C\) is the contaminant concentration, and we are interested in how its concentration changes with time \(\left( \frac{\partial C}{\partial t} \right)\) and with distance \(\left( \frac{\partial C}{\partial x} \right)\). Because there are changes with time and with distance, we need to use a partial differential equation. In the partial differential equation above, \(D\) is the diffusion coefficient for the contaminant in water, \(v\) is the flow velocity \(\left( \frac{-K}{\rho} \dv{h}{x} \right)\) (can you figure out why this is the flow velocity from Darcy’s Law?), and \(R\) represents the chemical reactions that change the concentration with time. Diffusion can be molecular diffusion or mechanical dispersion, and the types of chemical reactions that change the concentration vary depending on the contaminant and the geochemical environment.
